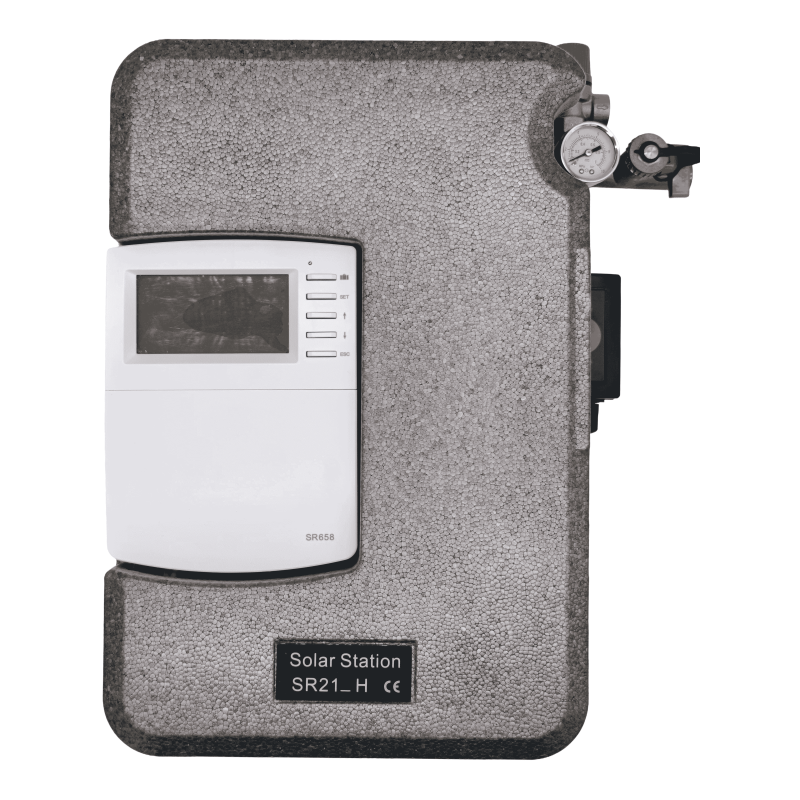

SR21_H pump set with controller
SOLAR STATION SR21H6 "wyswietlacz"
EAN-13:
S21_H pump set with controller
The set includes:
2x PT1000 1.5m sensor
4x NTC10K 3m sensor
1.744,72 tax excl.
The lowest price of this product in 30 days before discount was 1,854.00 PLN.
36 rat x ~73 zł
Pump station with SR21_H controller for split solar domestic hot water systems.
NOTE: This specific set is discounted due to a visual defect of the display!
This does not affect the operation of the controller or the display! The set is fully functional.
The warranty is also full!
Technical Data
Power supply: 200V ~ 240V AC, 50-60Hz
Casing: ABS plastic
Protection class: IP41
Ambient temperature: 0 ... 40 °C
Inputs and outputs
Inputs:
2* inputs for a PT1000 temperature sensor
4* inputs for NTC10K temperature sensors
1* input for a digital flow meter FRT
Outputs:
1* relay output for the pump
1* PWM output
Functions
The set is designed for systems with two pumps
Controller integrated with the pump station
Cooling and anti-legionella function (DVWG)
Manual mode, holiday function
Tank priority logic
Interface and operation
Display: Large LED display
Operation: 5 buttons on the front panel
- Equipment:
- temperature sensor
- Power supply:
- 230V AC
