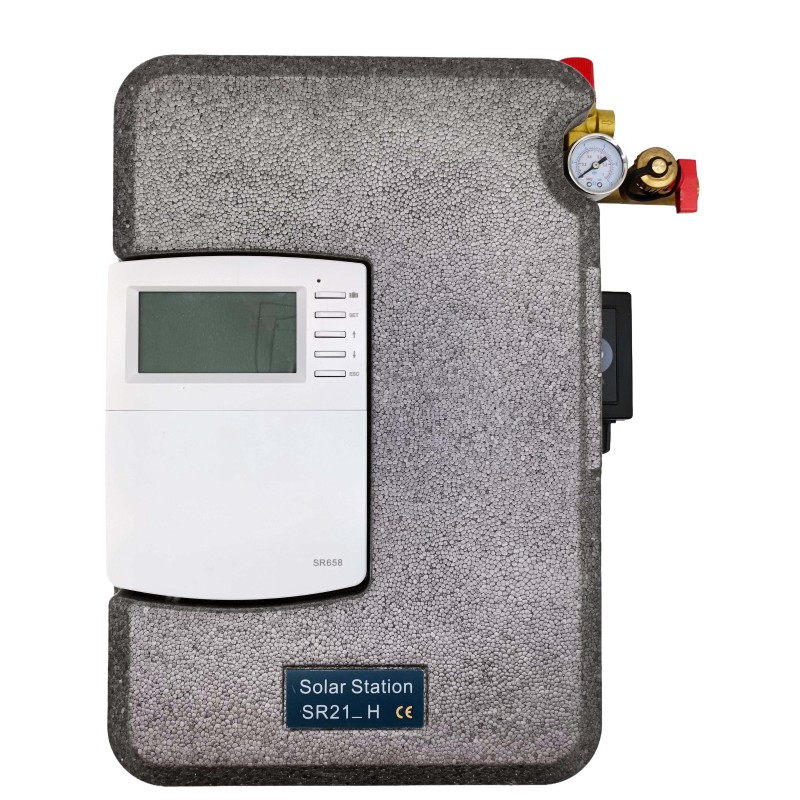

SR21_H pump set with controller
SOLAR STATION SR21H6
EAN-13: 5902734702944
S21_H pump set with controller
The set includes:
2x PT1000 1.5m sensor
4x NTC10K 3m sensor
1.907,32 tax excl.
The lowest price of this product in last 30 days was 2,346.00 PLN.
36 rat x ~79 zł
Pump station with SR21_H controller for split solar domestic hot water systems.
Technical Data
Power supply: 200V ~ 240V AC, 50-60Hz
Casing: ABS plastic
Protection class: IP41
Ambient temperature: 0 ... 40 °C
Inputs and outputs
Inputs:
2* inputs for a PT1000 temperature sensor
4* inputs for NTC10K temperature sensors
1* input for a digital flow meter FRT
Outputs:
1* relay output for the pump
1* PWM output
Functions
The set is designed for systems with two pumps
Controller integrated with the pump station
Cooling and anti-legionella function (DVWG)
Manual mode, holiday function
Tank priority logic
Interface and operation
Display: Large LED display
Operation: 5 buttons on the front panel
- Equipment:
- temperature sensor
- Power supply:
- 230V AC
