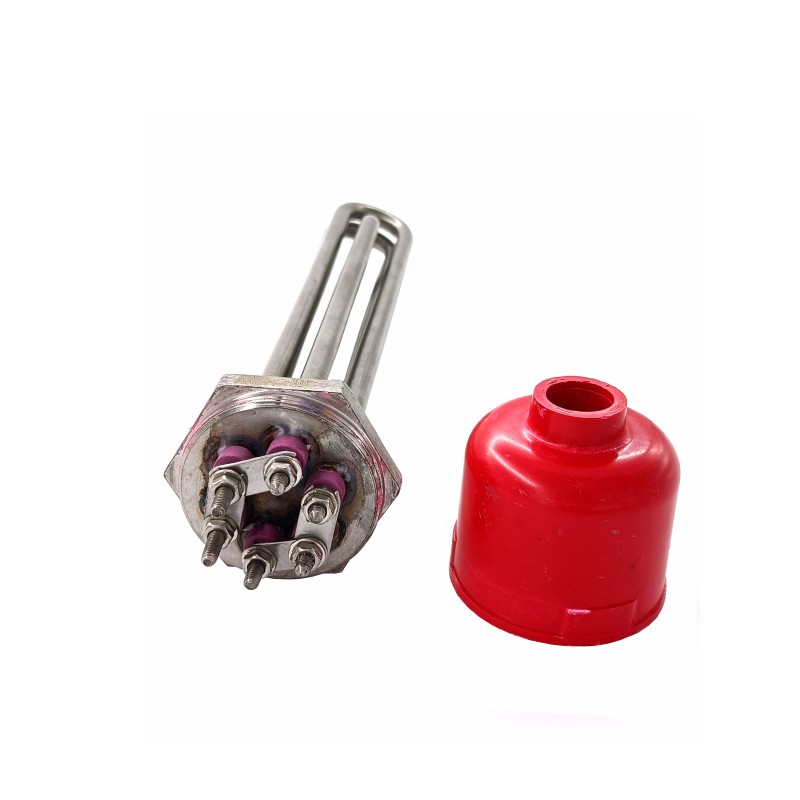

2000W Electric Heater with 5/4" Thread

Universal heater, designed for installation in most domestic hot water storage tanks (DHW) available on the market.

Application:

An ideal solution for heating water in a DHW storage tank. The heater can be easily installed in any tank using a standard 5/4 inch connection.

Technical data:

- Nominal Voltage: 230V or 400V AC
- Nominal Power: 2000 W
- Length of the heating element: 27 cm (+/- 2 cm)
- Total length: 32 cm (+/- 2 cm)
- Thread: external 5/4"
- Material of the heating element: stainless steel
- Connection cover (cap): Equipped with an installation opening with a maximum diameter of 15 mm, which allows for safe insertion of the power cable or the use of an appropriate cable gland.

Installation recommendations:

❗️ IMPORTANT: For safety reasons, the electrical installation must be performed by a person with appropriate qualifications. Proper grounding must be strictly ensured by connecting the protective conductor (PE) to the tank.

To ensure the highest performance and longevity of the heater, we recommend **horizontal installation**.

Vertical installation is also permissible, but **only from the bottom** of the tank. Installing the heater vertically from the top is not allowed, as this may lead to overheating and permanent damage.

Important: The heater is not designed for continuous operation. For safe and economical use, it is recommended to connect it to an external control system, e.g., a thermostat or an electronic controller.
