Application:

E.g., for heating water in a domestic hot water tank.

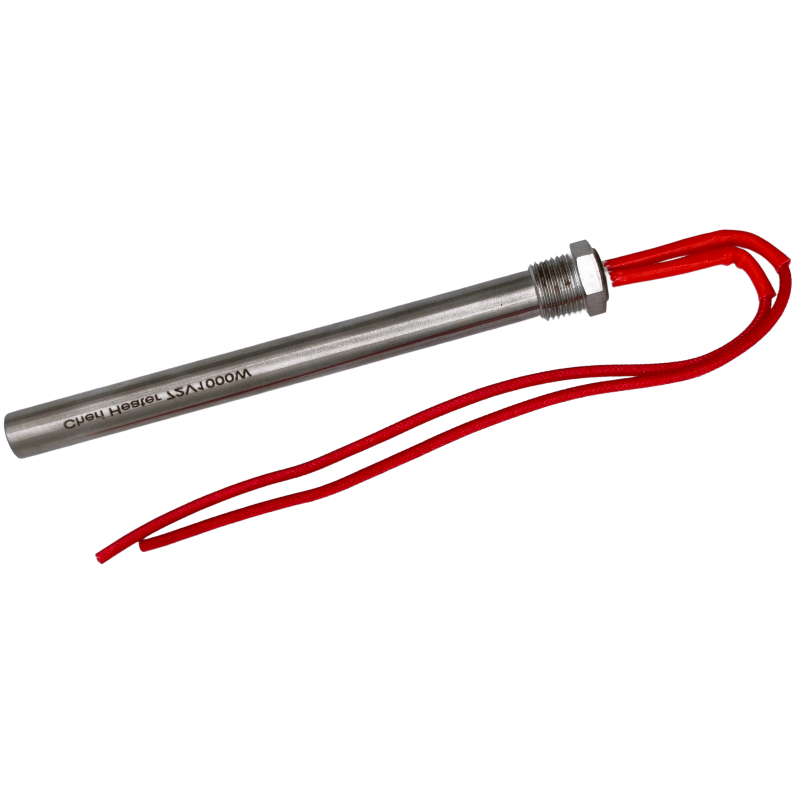

A narrow cartridge heater that can be installed in any domestic hot water tank in place of a 3/4 inch connection.

Technical data:

- Nominal voltage: 72V DC

- Nominal power: 1000W

- Heating element length: 200mm

- Heating element diameter: 16mm

- Thread: external 1/2"

- Heating element material: stainless steel (SS304)

- Type: Cartridge

Recommendations:

It is recommended to install the electric heater in a horizontal position, which ensures optimal operating efficiency.

Installation of the heater in a vertical position is permissible, but only from the bottom of the tank. Installing the heater in a vertical position from the top of the tank is not allowed, as the lack of a so-called “dead zone” can lead to its overheating and damage due to burnout.

Additionally, it is recommended to use appropriate controls, such as an electronic controller or a thermostat. The electric heater is not designed for continuous operation, so proper control is crucial for its safe and efficient use.
