Application:

E.g., for heating water in a domestic hot water storage tank (DHW).

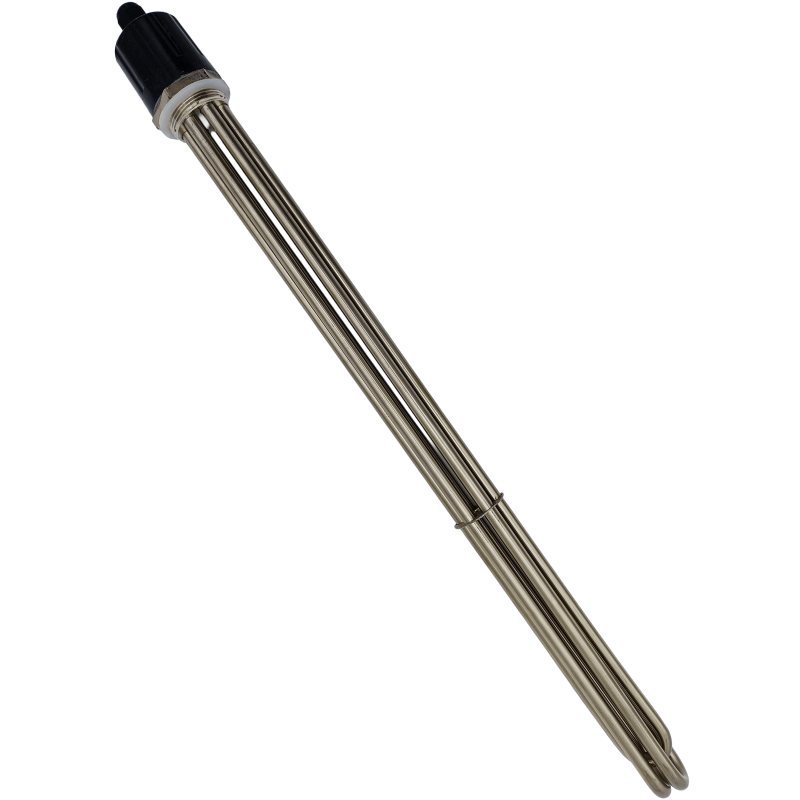

Heater that can be installed in any DHW storage tank in place of a 6/4 inch connection.

Technical data:

- Nominal Voltage: 230V / 400V AC

- Nominal Power: 9000W

- Length of the heating element: 600mm

- Thread: external 6/4" (1.5")

- Material of the heating element: stainless steel (SS304)

- Connection cover (cap): Equipped with an installation opening with a maximum diameter of 19 mm, which allows for safe insertion of the power cable or the use of an appropriate cable gland.

Recommendations:

❗️ IMPORTANT: For safety reasons, the electrical installation must be performed by a person with appropriate qualifications. Proper grounding must be strictly ensured by connecting the protective conductor (PE) to the tank.

Horizontal installation of the electric heater is recommended to ensure its optimal operating efficiency.

Vertical installation of the heater is permissible, but only from the bottom of the tank. Installing the heater vertically from the top of the tank is not allowed, as the lack of a so-called "dead zone" can lead to overheating and damage from burnout.

Additionally, it is recommended to use appropriate control, such as an electronic controller or thermostat. The electric heater is not designed for continuous operation, therefore proper control is crucial for its safe and effective use.
