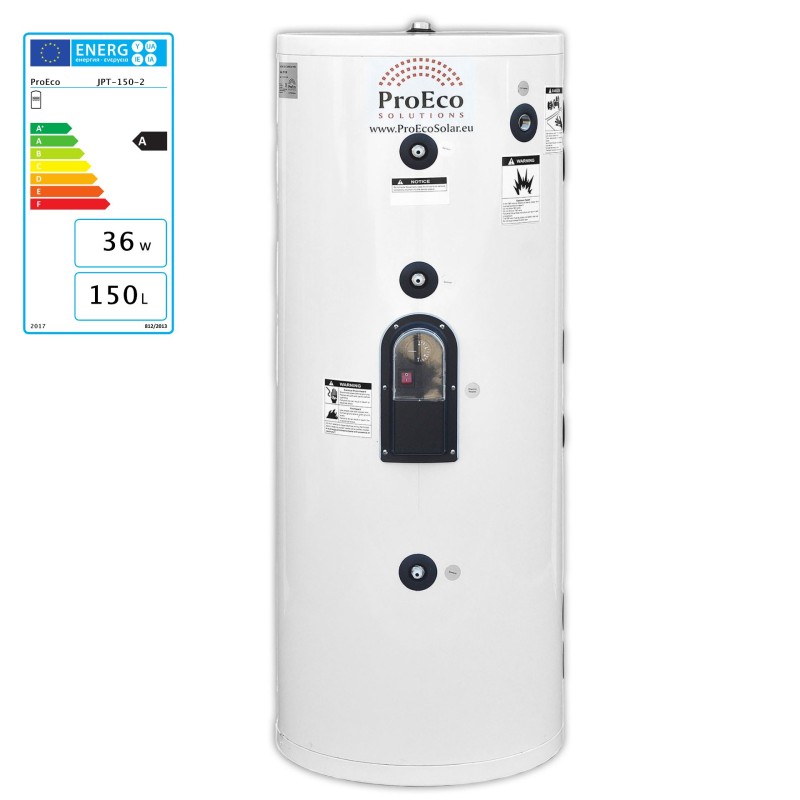

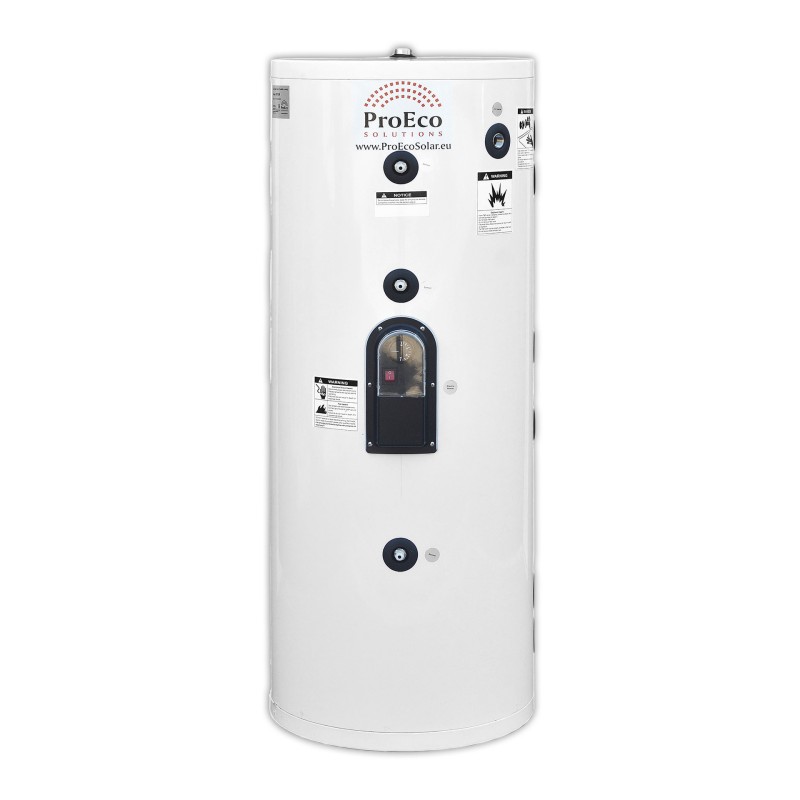

A 150-liter domestic hot water cylinder designed for efficient heating and storage of domestic hot water in single-family and multi-family buildings, industrial facilities, and commercial properties. This product features high-quality workmanship, modern technologies, and excellent energy efficiency, ensuring reliability and longevity.

Basic specifications:

1. Type: Vertical stainless steel heat exchanger with two stainless steel spiral coils.

• Inner tank made of high-grade SUS 304 stainless steel, ensuring corrosion resistance and long service life.

• Two 22 mm diameter SUS 304 stainless steel coils ensure durability and efficient water heating.

2. Energy efficiency:

• Advanced polyurethane foam insulation (45 mm) minimizes heat loss, allowing for long-term storage of hot water without significant energy loss.

3. Robust construction:

• The tank's outer shell is made of 0.5 mm thick, painted galvanized steel, protecting it from mechanical damage and weather conditions.

4. Corrosion protection:

• The tank is equipped with a magnesium anode, effectively protecting it from corrosion and extending its lifespan.

5. Versatility:

• Two high-efficiency coils allow for connection to various heat sources. The tank also has space for an electric heater.

• 4 3/4" inlets and outlets

Technical specifications:

• Inner tank: SUS 304 stainless steel (1.2 mm thick, Ø365 mm diameter)

• Outer tank: Painted steel (0.5 mm thick, Ø470 mm diameter)

• Insulation: 42 kg/m³ polyurethane foam, 45 mm thick

• 3/4" inputs and outputs

• Overall packaging dimensions: 1690 x 550 x 550 mm

• Heat loss and energy class: A, 36W

Coil parameters:

• Material: SUS 304 stainless steel

• Diameter: 22 mm

• Thickness: 1 mm

• Length: 10 m + 10 m

Coil area:

• Upper coil: 0.7 m²

• Lower coil: 0.7 m²

Equipment:

• Magnesium anode
• Pressure-thermal valve
• Thermostat

The tank is also available in other capacity versions (200 L, 250 L, 300 L, 400 L, 500 L)
