Application:

The titanium anode is a modern anti-corrosion protection element for domestic hot water tanks. Unlike traditional magnesium anodes, which gradually wear out, the titanium anode operates in an active ICCP (Impressed Current Cathodic Protection) system and practically does not dissolve in water.

Titanium anodes are used to protect DHW cylinders, solar storage tanks, electric boilers, enamelled tanks, stainless steel tanks, and water storage installations. They are especially recommended for solar installations and wherever magnesium anodes wear out very quickly or require frequent replacement.

The use of a titanium anode effectively stops the corrosion process, which significantly extends the life of the tank (even 8–10 years of operation without replacement). Additionally, it eliminates the problem of the unpleasant smell of hydrogen sulfide in the water and ensures stable operation even in water with high mineralization.

Operating principle and installation:

The system consists of an anode placed in the tank and an electronic controller (power supply) that generates a small protective current. Due to the potential difference, the surface of the tank becomes a cathode and is protected against corrosion.

Installation is very simple: the titanium anode is mounted in place of the magnesium anode (or in a dedicated port). The anode cable is connected to the controller, the tank is connected as the negative pole of the system, and the controller itself is connected to the electrical network.

The controller is equipped with control LEDs indicating the status of the system:

- green LED: correct system operation

- red LED: error or break in the anode circuit detected

Technical Data - Controller (Power Supply):

- power supply: AC 110–240 V / 50–60 Hz

- power consumption: max. approx. 0.03 A

- output voltage: up to 10 V DC

- output current: max. 0.2 A

- operating temperature range: 0–70 °C

- protection degree: IP20

- PS power supply version: intended for tanks made of stainless steel

Technical Data - Titanium Anode:

- electrode material: titanium

- mounting thread: 3/4" (NPT / G / R – depending on the version)

- electrode diameter: approx. 3 mm

- insulator diameter: approx. 20 mm

- cable length: approx. 1.5 m

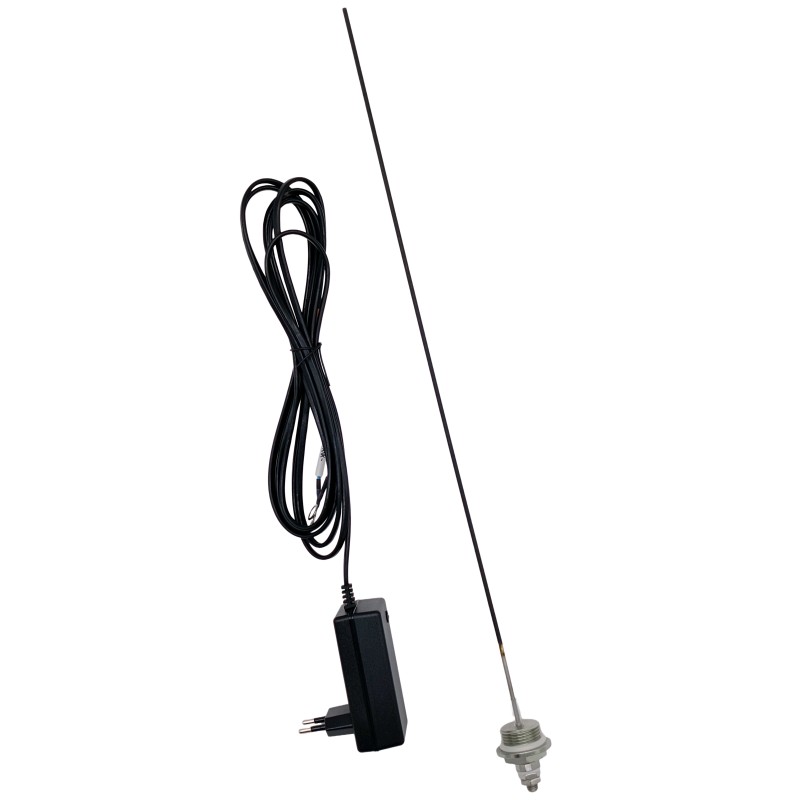

- Ti800 model: electrode length approx. 800 mm, total length approx. 835 mm (recommended for 400 – 1000 liter tanks)

❗️ IMPORTANT: Before installation, ensure the correct selection of the anode model and controller for the volume and material of the tank.

PE power supply version: designed for tanks made of enamelled steel
PS power supply version: designed for tanks made of stainless steel
