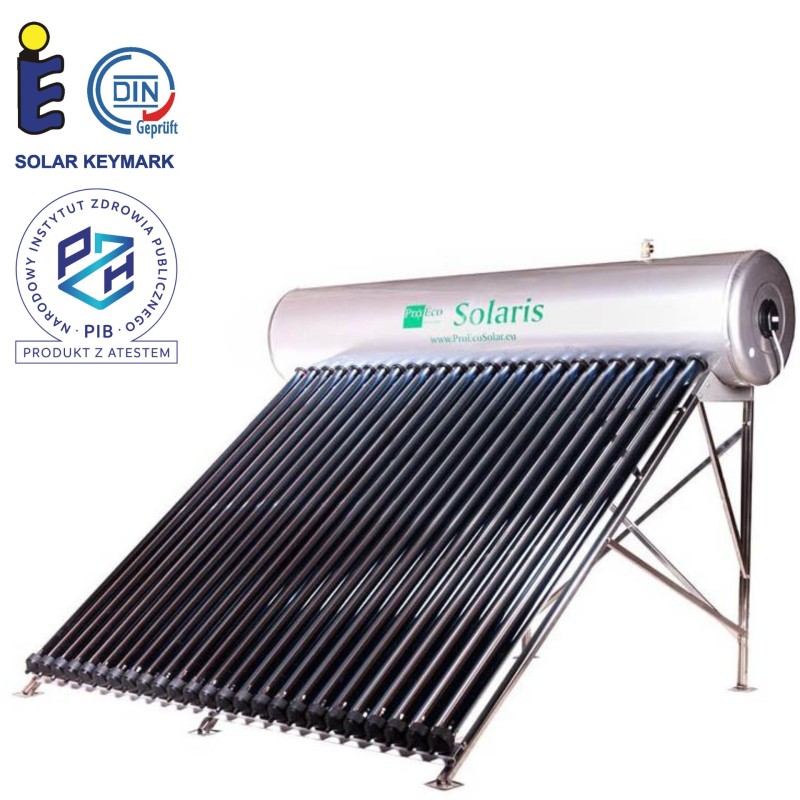

Solar pressure water heater PROECO SOLARIS P-95 Econo

The device meets the needs for hot water after the heating season (March - October) of 4-6 persons. The device uses free solar energy. It is an alternative solution for costly and extensive traditional solar systems. The simple design of the device allows for self-installation without losing the warranty. The reliability of solar water heaters and their very low operating costs guarantee the comfort of use and allow for a quick return of invested money.

Hygienic Certificate.pdf

 Advantages:

- Comfort of use - utility hot water under pressure. The water in the tank is under constant pressure from the water supply network.
- The heater can be installed in any sunny place. Hot water is pushed to the building by the pressure from the water supply network.
- Tank connections 3/4". Higher pressure - higher comfort of use.
- Possibility of easy connection to other devices existing in the utility hot water system.
- Heat pipes are used to transfer thermal energy from the collector to the storage tank.
- There is no water in the vacuum tube. Easy replacement in the event of damage.
- There is no ventilation tube. Better insulation - less heat loss.

 Set includes:

- vacuum solar collector (25 vacuum tubes with a triple absorption layer ALN/AIN-SS/CU and with HEAT PIPE)
- insulated water tank made of stainless steel SUS 304 with a capacity of 230 liters (in a housing made of stainless steel SUS 201)
- universal steel frame (stainless steel SUS 201)
- magnesium anode rod
- safety (pressure-thermal) valve
- thermal paste

Set may also include:
- spare vacuum tube clamp
- spare sleeve for heat pipe
- spare silicone protector
- non-return valve

 Characteristics of heater:

 How the pressure water heater works and its design

-> Design and principle of operation of the water heater from PROECO Solaris-P and HP series <-

 Instructions and technical data:

   SOLARIS P Manual.pdf

   Dimensions and weight of heaters.pdf

   Declaration of Conformity (CE).pdf

 It is recommended also to purchase:

-> Vacuum tube 58/1800 (ALN/AIN-SS/CU)<-
