Application:

E.g. for heating water in a domestic hot water tank.

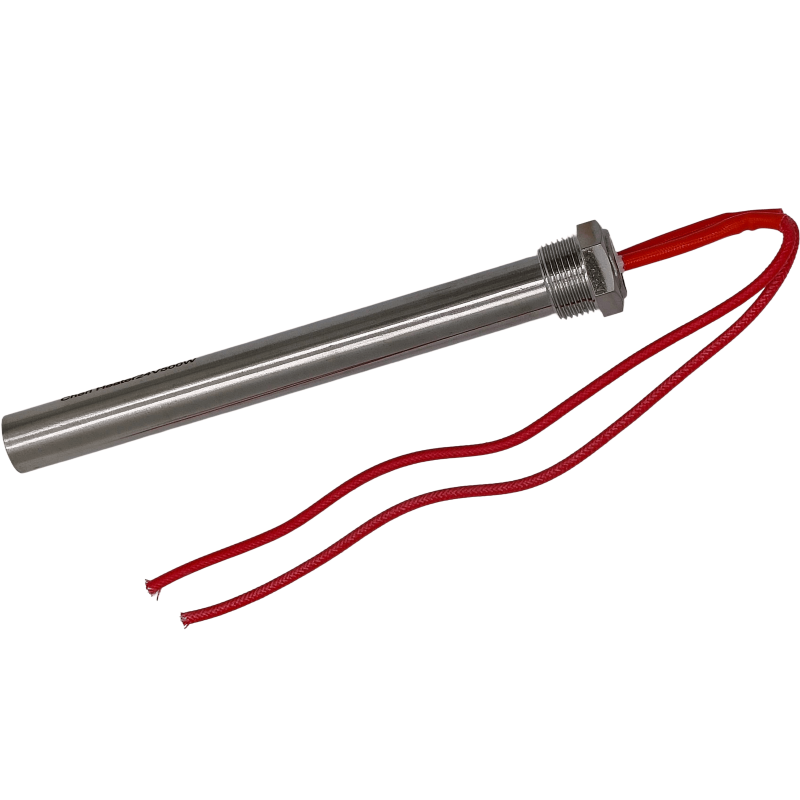

A narrow cassette heater that can be installed in any domestic hot water tank in place of a 3/4 inch connection.

Technical data:

- Nominal voltage: 24V DC

- Nominal power: 500W

- Heating element length: 200mm

- Heating element diameter: 20mm

- Thread: 3/4" external

- Heating element material: stainless steel (SS304)

- Type: Cassette

Recommendations:

It is recommended to install the electric heater in a horizontal position, which ensures its optimal operating efficiency.

It is permissible to install the heater in a vertical position, but only from the bottom of the tank. Installing the heater in a vertical position from the top of the tank is not allowed, as the lack of a "dead zone" can lead to its overheating and damage due to burnout.

Additionally, it is recommended to use an appropriate controller, such as an electronic controller or thermostat. The electric heater is not intended for continuous operation, so proper control is crucial for its safe and effective use.
