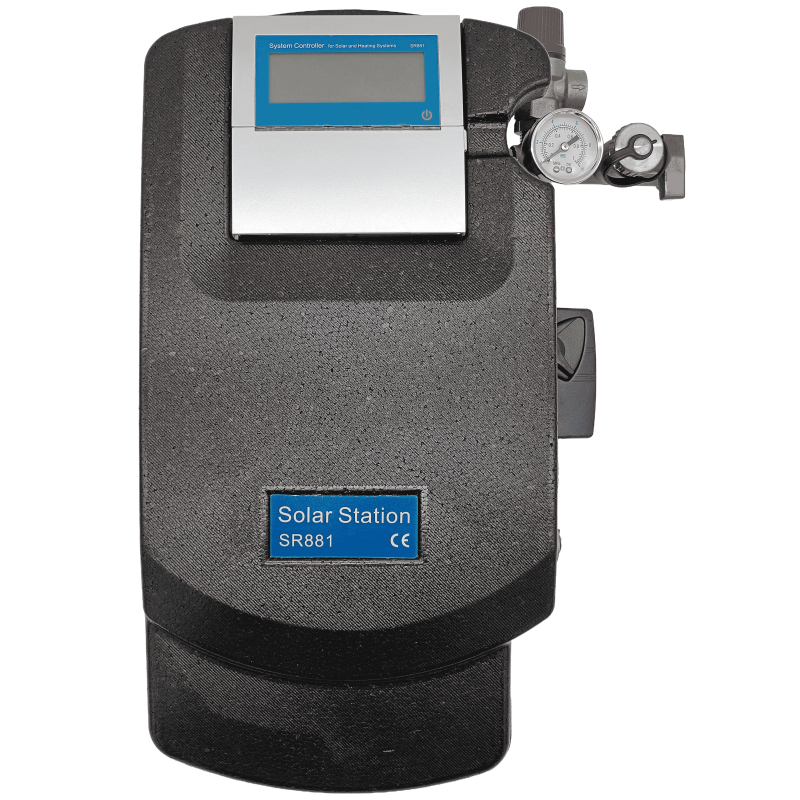

SR881 pump set with controller
SOLAR STATION SR881
EAN-13: 5902734702937
SR881 pump set with controller
The set includes:
1x PT1000 1.5m sensor
2x NTC10K 3m sensor
1.507,32 tax excl.
The lowest price of this product in last 30 days was 1,854.00 PLN.
36 rat x ~63 zł
Pump set with SR881 controller for split solar domestic hot water systems.
Technical Data
Station Dimensions: 330 mm x 200 mm x 135 mm
Power Supply: 200V ~ 240V AC, 50-60Hz
Inputs and Outputs
Inputs:
1* input for PT1000 temperature sensor
2* inputs for NTC10K temperature sensors
1* input for digital flow meter FRT
Outputs:
1* relay output for pump
1* PWM output
Functions
Controller integrated with the pump station
13 different selectable systems (SYS1-SYS13)
Temperature differential control (DT)
Temperature limitation in collector and tank
Cooling and anti-legionella function (DVWG)
Manual mode, holiday function
Tank priority logic
Interface and Operation
Display: Large LED display
Operation: 5 buttons on the front panel
User Manual:
- Surface mounting:
- on the wall / hanging
- Equipment:
- temperature sensor
- Warranty period:
- 12 months
- Power supply:
- 230V AC
