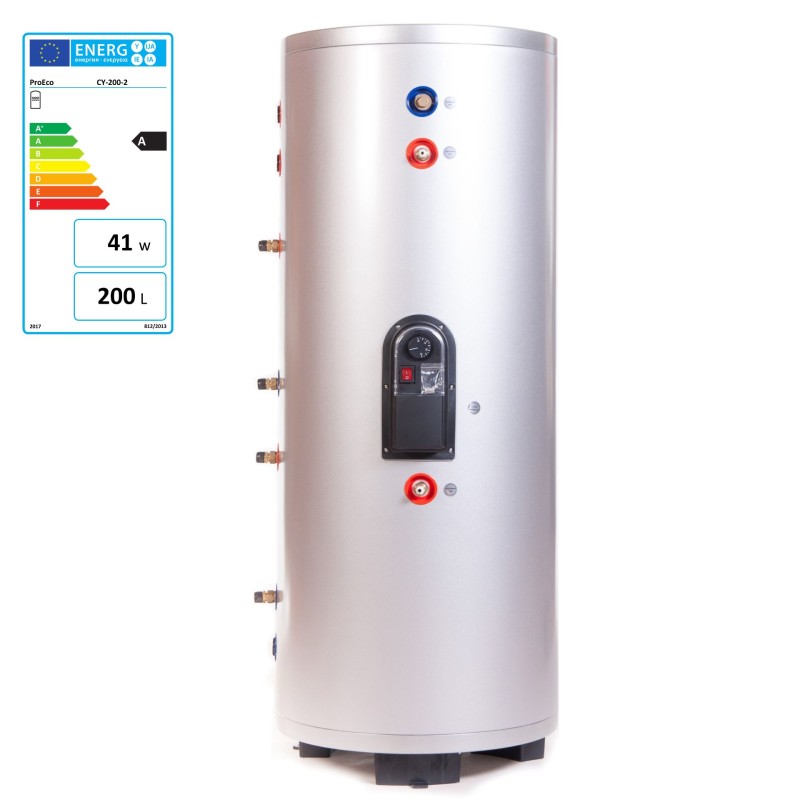

Water Tank 200 l. with 2 copper coils
TANK SS 200-2 CU 12
EAN-13: 5902734700513
Utility hot water tank with a capacity of 200 liters made of stainless steel with two copper coils fully equipped.
Utility hot water tank with a capacity of 200 liters with two copper coils and:
- electric heater with thermostat
- safety (pressure) valve and pressure-thermal valve
- magnesium anode rod (to protect among the others the electric heater)
Advantages:
- Made of stainless steel
- Very good thermal insulation (polyurethane foam with thickness of at least 5cm)
- Two copper coils (possibility of connecting to 2 independent heat sources)
- Two sleeves for two temperature sensors
- Durable external housing (made of steel)
- Full equipment
Technical data:
Utility hot water tanks for solar sets
Capacity |
100 l. |
150 l. |
200 l. |
250 l. |
300 l. |
500 l. |
Internal diameter of tank |
370 mm |
370 mm |
470 mm |
470 mm |
470 mm |
600 mm |
External diameter |
470 mm |
470 mm |
560 mm |
560 mm |
560 mm |
700 mm |
Material of the inside of the tank |
Stainless steelSUS304 1.2 mm |
Stainless steel SUS304 1.2 mm |
Stainless steel SUS304 1.5 mm |
Stainless steel SUS304 1.5 mm |
Stainless steel SUS304 1.5 mm |
Stainless steel SUS304 2 mm |
Material of the outside of the tank |
Galvanized steel 0.55 mm |
Galvanized steel 0.55 mm |
Galvanized steel 0.55 mm |
Galvanized steel 0.55 mm |
Galvanized steel 0.55 mm |
Galvanized steel 0.6 mm |
Type of thermal insulation |
Polyurethane foam |
Polyurethane foam |
Polyurethane foam |
Polyurethane foam |
Polyurethane foam |
Polyurethane foam |
Thickness of insulation |
50 mm |
50 mm |
45 mm |
45 mm |
45 mm |
50 mm |
Number of exchangers (coil) |
2 |
2 |
2 |
2 |
2 |
2 |
Length of coil |
15 m (copper) |
15 m (copper) |
15 m (copper) |
15 m (copper) |
15 m (copper) |
15 m (copper) |
Diameter/thickness of coil |
12 mm / 1.0 mm |
12 mm / 1.0 mm |
12 mm / 1.0 mm |
12 mm / 1.0 mm |
12 mm / 1.0 mm |
12 mm / 1.0 mm |
Exchanger connector |
1/2’’ |
1/2’’ |
1/2’’ |
1/2’’ |
1/2’’ |
1/2’’ |
Tank connector |
3/4’’ |
3/4’’ |
3/4’’ |
3/4’’ |
3/4’’ |
3/4’’ |
Height of the tank |
1040 mm |
1440 mm |
1250 mm |
1520 mm |
1810 mm |
1850 mm |
Size of packaging |
550 x 550 x 1120 mm |
550 x 550 x 1500 mm |
645 x 645 x 1330 mm |
645 x 645 x 1580 mm |
645 x 645 x 1870 mm |
780 x 780 x 1950 mm |
