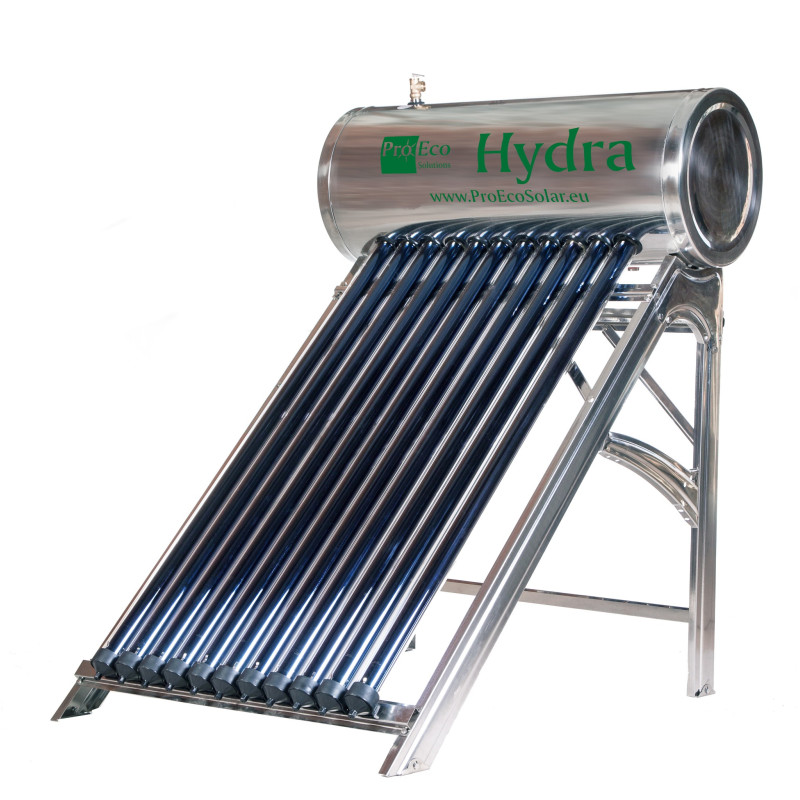

Solar Water heater PROECO HYDRA P-100
PROECO HYDRA P-100
EAN-13: 5902734700346
Pressure water heater PROECO HYDRA P-100
- solar thermal collector with 11 vacuum tubes
- insulated water tank with capacity of 93 liters
- universal stainless steel frame
2,100.00 PLN
1.707,32 tax excl.
The lowest price of this product in last 30 days was 2,100.00 PLN.
Possible delivery within 10 days
PROECO HYDRA P-100 Solar Water Heater - Pressurized
The device is designed to meet the domestic hot water needs of 1-3 people during the heating season (March - October). The device utilizes free solar energy. It is an alternative solution to expensive and complex traditional solar systems. The simple construction of the device allows for self-assembly without losing the warranty. The reliability of solar water heaters and their low operating costs guarantee comfort of use and allow for a quick return on investment.
Advantages:
- Comfort of use - domestic hot water under pressure. Water in the tank is under constant pressure from the water supply network.
- The heater can be installed in any sunny place. Hot water is pushed to the building by the pressure from the water supply network.
- 3/4" tank connections. Higher pressure - greater comfort of use.
- Possibility of easy connection with other devices existing in the DHW installation.
- Heat pipes are used to transfer thermal energy from the collector to the storage tank.
- No water in the vacuum tube. Simplicity of replacement in case of damage.
- No ventilation tube. Better insulation - lower heat losses.
Heater features:
| Water tank | cap. 113 liters, stainless steel SUS 304 |
| Number of vacuum tubes | 11 pcs |
| Vacuum tube size | 58mm/1500mm |
| Heat-Pipe application | YES |
| Absorber type | Triple layer CU/SS-ALN(H)/SS-ALN(L)ALN |
| Frame | stainless steel |
| Tank thermal insulation | high density polyurethane foam, min. 50mm |
| Heat exchanger | stainless steel heat-pipe sleeve |
| Hail resistance | Φ25 mm |
| Efficiency | raises water temp. by 45-60°C on a sunny day |
The set includes:
- vacuum solar collector (11 vacuum tubes 58/1500 with ALN/AIN-SS/CU triple absorption layer using HEAT PIPE)
- insulated stainless steel water tank with a capacity of 113 l. (in stainless steel casing)
- universal steel frame (stainless steel)
- magnesium anode
- safety valve (pressure-thermal)
- thermal paste
The set may also include:
- spare vacuum tube 58/1500
- spare vacuum tube holder
- spare heat-pipe sleeve
- spare silicone cover
Construction and principle of operation of the pressurized water heater
Installation and operating manual:
Dimensions and weight of the heater.pdf
© The content of this manual, both in whole and in parts, is protected by law. Any use of the content or photos requires the consent of Pro Eco Solutions Ltd. In particular, this refers to copying, translation, and storage in electronic form.
Reference:
PROECO HYDRA P-100
- Heater capacity (l.):
- 113
- Average demand for:
- for 1 to 3 person
- Hot water collection:
- under pressure from the water mains
- Surface mounting:
- for flat or sloping to 20 degrees
- Number of vacuum tubes (pcs):
- 11
- Vacuum tube size (mm):
- 58 mm / 1500 mm
- Use of Heat-Pipe:
- YES
- Water tank:
- stainless steel SUS 304 1.2mm
- Heat exchanger in the tank:
- heat-pipe stainless steel sleeves
- Cover of the tank:
- stainless steel SUS 201
- Bracket:
- stainless steel SUS 201
- Equipment:
- magnesium anode
safety valve (pressure-thermal)
temperature sensor sleeve
thermal paste - Warranty period:
- 36 miesięcy
