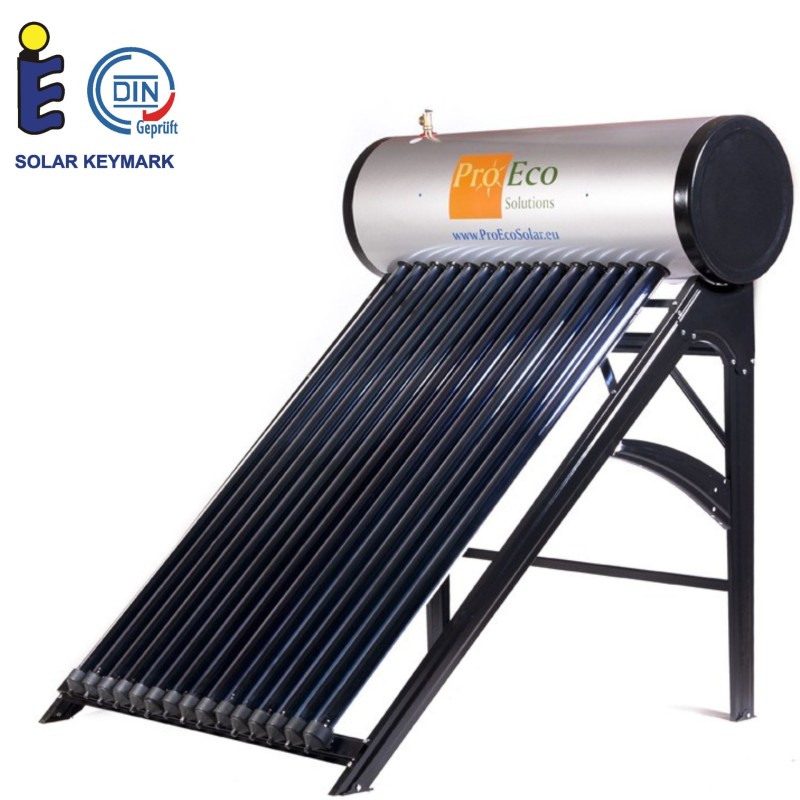

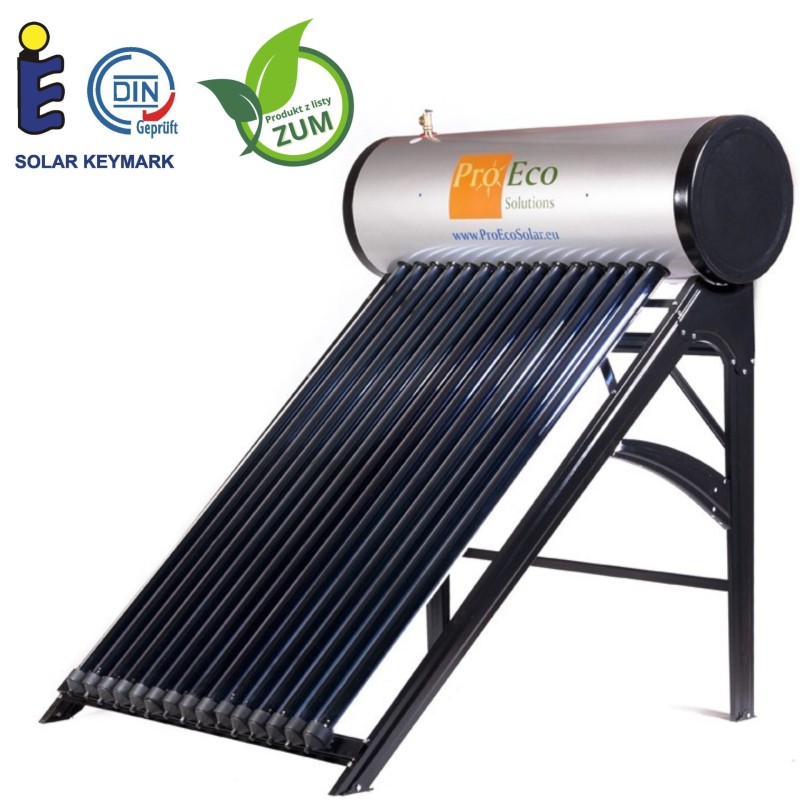

Solar Water heater PROECO HP-150
PROECO HP-150
EAN-13: 5902734700025
Compact Pressurized Water Heater PROECO HP-150
- Solar collector consisting of 15 vacuum tubes
- Insulated water tank with a capacity of 149 liters.
- versatile steel frame
2,249.00 PLN
1.828,46 tax excl.
The lowest price of this product in last 30 days was 2,249.00 PLN.
Possible delivery within 10 days
PROECO HP-150 Solar Water Heater - Pressurized
The device is designed to meet the domestic hot water needs of 2-4 people after the heating season (March - October). The device utilizes free solar energy. It is an alternative solution to expensive and complex traditional solar systems. The simple design of the device allows for self-assembly without losing the warranty. The reliability of solar water heaters and their low operating costs guarantee comfort of use and ensure a quick return on investment.
Certificates and Subsidies (ZUM List) 📜
The device meets strict technical and hygienic standards, which guarantees full safety of use and enables obtaining government subsidies:
- Solar Keymark: The most important European quality certificate for solar equipment. It is an absolute prerequisite for applying for funding.
- ZUM List: The product is registered in the official NFOŚiGW registry, providing an official guarantee of technical acceptance for grant applications in subsidy programs (e.g., Czyste Powietrze / Clean Air).
Advantages:
- Comfort of use - domestic hot water under pressure. The water in the tank is under continuous pressure from the water supply network.
- The heater can be installed in any sunny location. Hot water is pushed into the building by the pressure from the water supply network.
- 3/4" tank connections. Higher pressure - greater comfort of use.
- Easy connection to other existing devices in the DHW system.
- Heat pipes are used to transfer thermal energy from the collector to the storage tank.
- There is no water in the vacuum tube. Simplicity of replacement in case of damage.
- No ventilation pipe. Better insulation - lower heat loss.
The set includes:
- vacuum solar collector (15 vacuum tubes with triple absorption layer ALN/AIN-SS/CU with HEAT PIPE application)
- insulated stainless steel water tank with a capacity of 149 l. (in a casing with PVDF coating)
- universal steel frame (galvanized, powder-coated) for installation on flat and sloped surfaces
- electric heater
- magnesium anode
- safety valve (pressure and temperature relief valve)
- thermal conductive paste
The set may also include:
- spare vacuum tube holder
- spare heat-pipe sleeve
- spare silicone cover
- check valve
Heater features:
| Water tank: | cap. 149 liters, SUS 304 stainless steel |
| Number of vacuum tubes: | 15 pcs |
| Size of vacuum tubes: | 58mm / 1800mm |
| Heat-Pipe application: | YES |
| Absorber type: | triple layer CU/SS-ALN(H)/SS-ALN(L)ALN |
| Frame: | galvanized steel, powder coated |
| Tank thermal insulation: | high-density polyurethane foam, min. 50mm |
| Heat exchanger: | stainless steel heat-pipe sleeve |
| Hail resistance: | Φ25 mm |
| Efficiency: | raises water temp. by 45-60°C on a sunny day |
Design and operating principle of a pressurized water heater
Instructions and technical data:
PROECO HP Installation Manual.pdf
Installation manual for sloped surfaces (annex).pdf
Dimensions and weights of heaters.pdf
Declaration of Conformity (CE)
© The content of this manual, both in whole and in fragments, is protected by law. Any use of the content or photos requires the consent of Pro Eco Solutions Ltd. This applies in particular to copying, translation, and electronic storage.
Reference:
PROECO HP-150
- Heater capacity (l.):
- 149
- Average demand for:
- for 2 to 4 person
- Hot water collection:
- under pressure from the water mains
- Surface mounting:
- for flat or sloping from 21 to 35 degrees
- Number of vacuum tubes (pcs):
- 15
- Vacuum tube size (mm):
- 58 mm / 1800 mm
- Use of Heat-Pipe:
- YES
- Water tank:
- stainless steel SUS 304 1.2mm
- Heat exchanger in the tank:
- heat-pipe stainless steel sleeves
- Cover of the tank:
- PVDF
- Bracket:
- galvanized steel, powder coated
- Equipment:
- electric heater
magnesium anode
safety valve (pressure-thermal)
temperature sensor sleeve
thermal paste - Warranty period:
- 36 months
