Application:

The titanium anode is a modern anti-corrosion protection element for domestic hot water tanks. Unlike traditional magnesium anodes, which wear out gradually, the titanium anode operates in an ICCP (Impressed Current Cathodic Protection) system and practically does not dissolve in water.

Titanium anodes are used to protect DHW tanks, solar storage tanks, electric boilers, enameled tanks, stainless steel tanks, and water storage installations. They are especially recommended for solar installations and wherever magnesium anodes wear out very quickly or require frequent replacement.

The use of a titanium anode effectively stops the corrosion process, significantly extending the life of the tank (up to 8–10 years of operation without replacement). Additionally, it eliminates the problem of unpleasant hydrogen sulfide odor in the water and ensures stable operation even in high mineralization water.

Operating principle and installation:

The system consists of an anode placed in the tank and an electronic controller (power supply), which generates a small protective current. Due to the potential difference, the tank surface becomes a cathode and is protected against corrosion.

Installation is very simple: the titanium anode is mounted in place of the magnesium anode (or in a dedicated port). The anode cable is connected to the controller, the tank is connected as the negative pole of the system, and the controller itself to the power grid.

The controller is equipped with control LEDs informing about the system status:

- green LED: correct system operation

- red LED: error or break in the anode circuit detected

Technical Data - Controller (Power Supply):

- power supply: AC 110–240 V / 50–60 Hz

- current consumption: max approx. 0.03 A

- output voltage: up to 10 V DC

- output current: max 0.2 A

- operating temperature range: 0–70 °C

- protection degree: IP20

- PS power supply version: intended for tanks made of stainless steel

Technical Data - Titanium Anode:

- electrode material: titanium

- mounting thread: 3/4" (NPT / G / R – depending on version)

- electrode diameter: approx. 3 mm

- insulator diameter: approx. 20 mm

- cable length: approx. 1.5 m

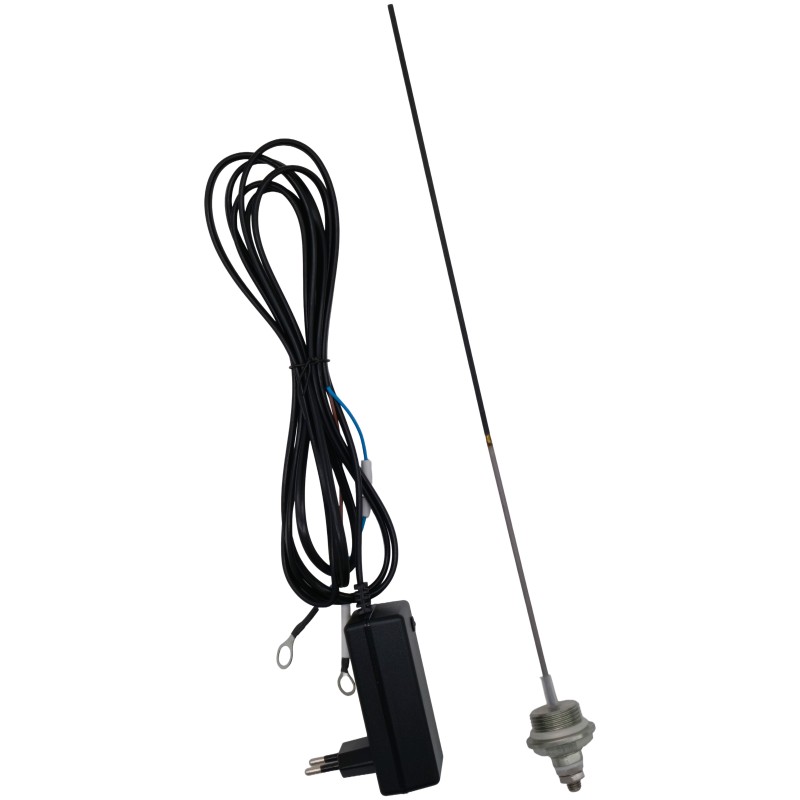

- Ti400 model: electrode length approx. 400 mm, total length approx. 435 mm (recommended for tanks 150 – 500 liters)

❗️ IMPORTANT: Before installation, make sure to properly select the anode and controller model according to the volume and material of the tank.

PE power supply version: intended for tanks made of enameled steel
PS power supply version: intended for tanks made of stainless steel
