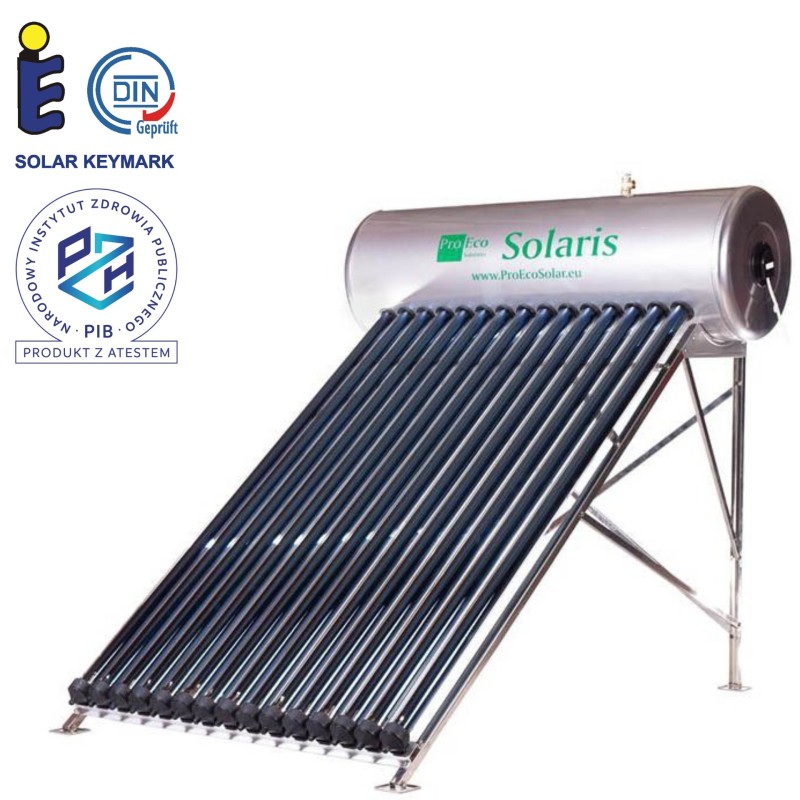

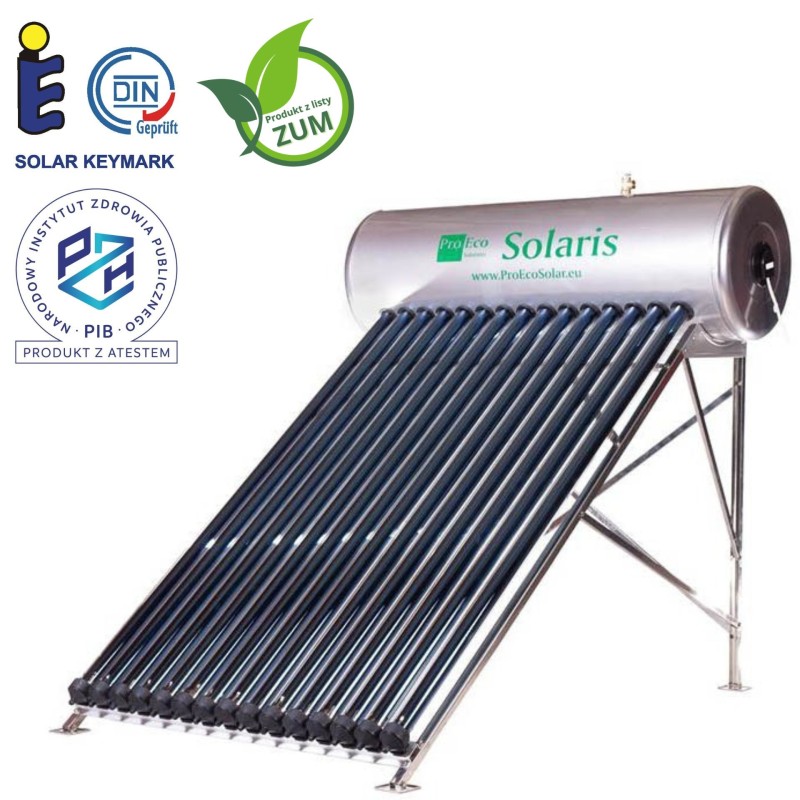

Solar Water heater PROECO SOLARIS P-145 Econo
PROECO SOLARIS P145E
EAN-13: 5902734701534
EPREL registration number: 2643829
Compact Pressurized Water Heater PROECO Solaris P-145
- Solar collector consisting of 15 vacuum tubes
- Insulated water tank with a capacity of 152 liters.
- Stainless steel frame
2,249.00 PLN
1.828,46 tax excl.
The lowest price of this product in last 30 days was 2,249.00 PLN.
Possible delivery within 10 days
PROECO SOLARIS P-145 Econo Solar Water Heater - pressurized
The device is designed to meet the domestic hot water needs of 2-4 people after the heating season (March - October). It uses free solar energy and provides an alternative solution to expensive and complex traditional solar systems. The simple design allows for DIY installation without voiding the warranty. The reliability of solar water heaters and their low operating costs guarantee comfort and ensure a quick return on investment.
Advantages:
- Comfort of use - pressurized hot water. The water in the tank is under constant pressure from the water mains.
- The heater can be installed in any sunny location. Hot water is pushed into the building by the water mains pressure.
- 3/4" tank connections. Higher pressure - greater comfort of use.
- Easy connection to other existing devices in the domestic hot water system.
- Heat pipes are used to transfer thermal energy from the collector to the storage tank.
- No water in the vacuum tube, making it easy to replace if damaged.
- No ventilation pipe means better insulation and lower heat loss.
The set includes:
- vacuum solar collector (15 vacuum tubes with triple absorption layer ALN/AIN-SS/CU using HEAT PIPE technology)
- insulated water tank made of SUS 304 stainless steel with a capacity of 152 L (in a SUS 201 stainless steel casing)
- universal steel frame (SUS 201 stainless steel)
- magnesium anode
- safety valve (pressure-thermal)
- thermal paste
The set may also include:
- spare vacuum tube holder
- spare heat-pipe sleeve
- spare silicone cover
- check valve
Technical specifications:
| Water tank | cap. 152 liters, stainless steel SUS 304 1.5mm |
| Number of vacuum tubes | 15 pcs |
| Vacuum tube size | 58mm/1800mm |
| Heat-Pipe usage | YES |
| Absorber type | Triple-layer CU/SS-ALN(H)/SS-ALN(L)ALN |
| Frame / Tank casing | stainless steel SUS 201 |
| Tank thermal insulation | high-density polyurethane foam, min. 50mm |
| Heat exchanger | stainless steel heat-pipe sleeve |
| Hail resistance | Φ25 mm |
| Efficiency | raises water temp. by 45-60°C on a sunny day |
Design and working principle of the pressurized water heater
-> Design and working principle of the PROECO Solaris-P and HP series pressurized water heaters <-
Instructions and technical data:
Recommended accessories:
-> Vacuum tube 58/1800 (ALN/AIN-SS/CU)<-
© The content of this manual, in whole or in parts, is protected by law. Any use of the content or photos requires the consent of Pro Eco Solutions Ltd. This applies in particular to copying, translating, and storing in electronic form.
Reference:
PROECO SOLARIS P145E
- Heater capacity (l.):
- 152
- Average demand for:
- for 2 to 4 person
- Hot water collection:
- under pressure from the water mains
- Surface mounting:
- for flat or sloping from 26 to 42 degrees
- Number of vacuum tubes (pcs):
- 15
- Vacuum tube size (mm):
- 58 mm / 1800 mm
- Use of Heat-Pipe:
- YES
- Water tank:
- stainless steel SUS 304 1.5mm
- Heat exchanger in the tank:
- nickel-plated copper heat-pipe sleeves
- Cover of the tank:
- stainless steel SUS 201
- Bracket:
- stainless steel SUS 201
- Equipment:
- magnesium anode
safety valve (pressure-thermal)
temperature sensor sleeve
thermal paste - Warranty period:
- 36 miesięcy
